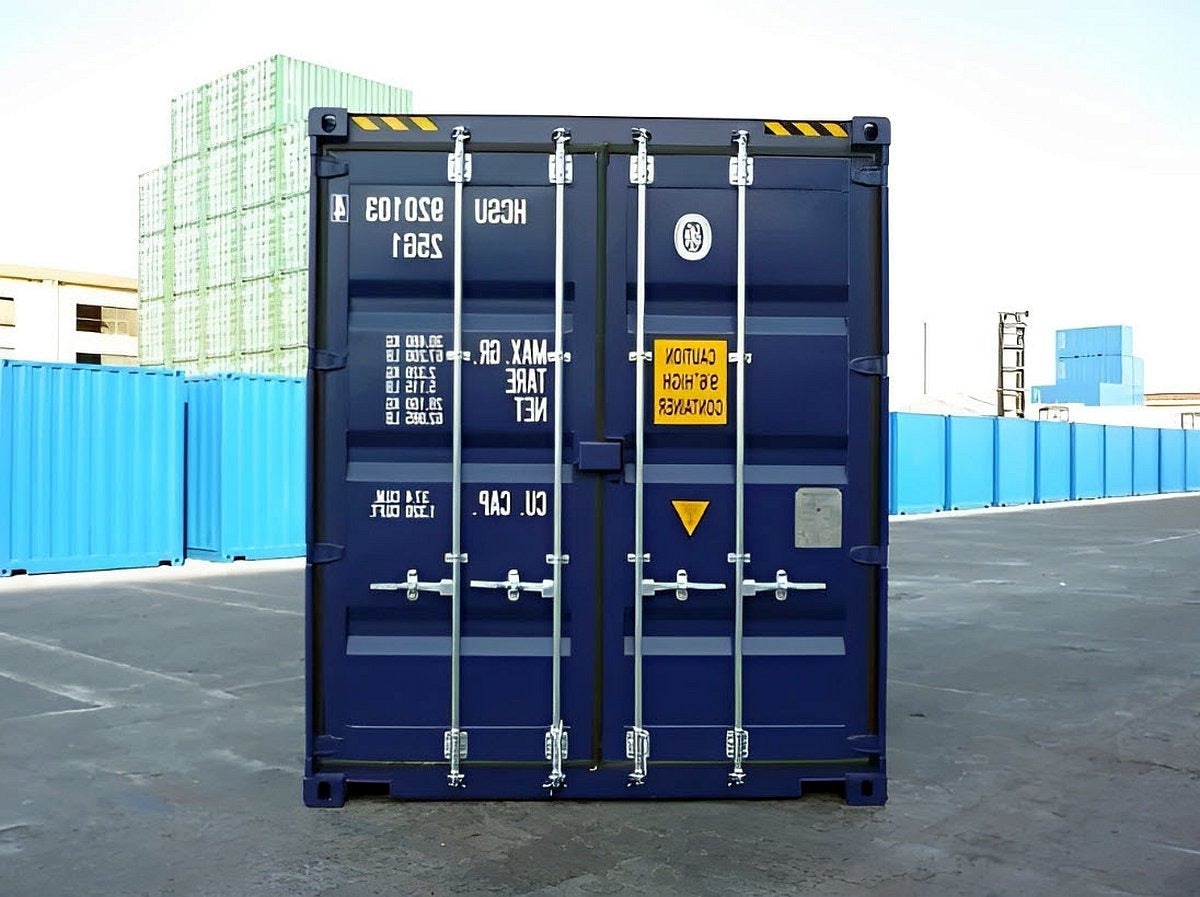

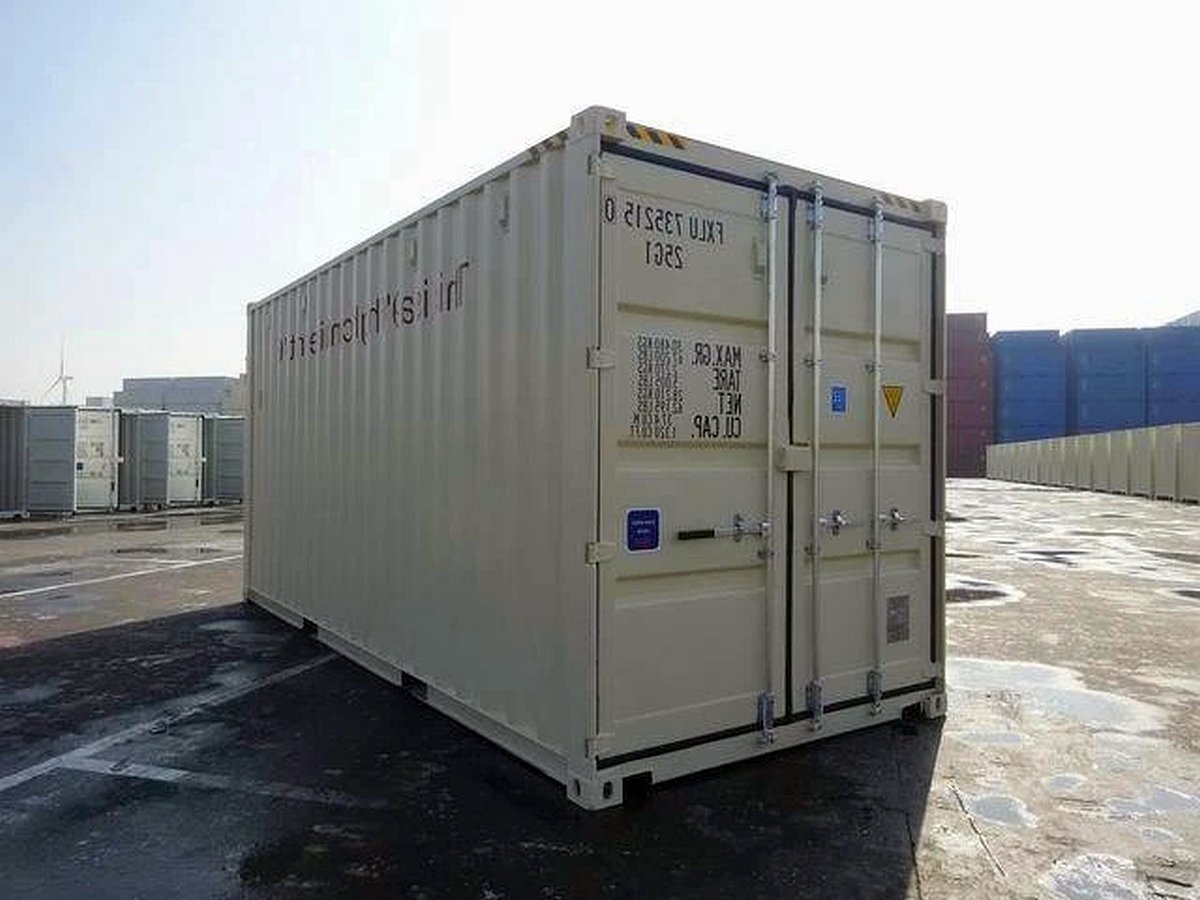

New 20ft Double Door Shipping Container
New 20ft Double Door Shipping Container
Precio habitual
$1,250.00 USD
Precio habitual
Precio de oferta
$1,250.00 USD
No se pudo cargar la disponibilidad de retiro
| Overview | |
|---|---|
| Product Name | New 20ft Double Door Shipping Container USA |
| SKU | NEW-20-DD-CHI-IL |
| Price | $1,250.50 |
| Condition | New |
| Condition Grade | One-Trip (OT) — minimal wear, like new |
| ISO Standard | ISO 668 Series 1 — 20ft intermodal freight container |
| Color | Color selection available on request — not guaranteed, subject to depot stock |
| Material | Corten steel (A606 / A588 weathering steel) |
| Lifespan | 25+ years with basic maintenance |
| External Dimensions | |
|---|---|
| Length | 20' |
| Width | 8' |
| Height | 8'6" (Standard (8'6")) |
| Internal Dimensions | |
|---|---|
| Length | 19'4" |
| Width | 7'8" |
| Height | 7'10" |
| Floor Area | 148 sq ft (13.8 m²) |
| Cubic Capacity | 1,169 cu ft (33.1 m³) |
| Weight & Load Capacity | |
|---|---|
| Tare Weight (Empty) | 4,850 lbs (2,200 kg) |
| Max Payload | 62,150 lbs (28,200 kg) |
| Max Gross Weight | 67,200 lbs (30,480 kg) |
| Stackability | Up to 9 units high (loaded) |
| Construction & Structure | |
|---|---|
| Walls & Roof | Corten steel (weathering steel A606/A588) — corrugated panels, anti-corrosion treated |
| Floor | Hardwood (Apitong/Keruing) — approx 1.1" thick, steel cross-members every 12" |
| Corner Castings | ISO standard steel corner castings — compatible with twist locks, spreader bars, and lashing rings |
| Lashing Rings | 8 forged steel lashing rings (4 floor, 4 ceiling) |
| Foundation Method | Corner castings rest on 4 points — concrete pads, railroad ties, or compacted gravel recommended |
| Doors & Access | |
|---|---|
| Door Configuration | Double Door — standard cargo doors at both the rear and front ends for drive-through or dual-access loading |
| Door Aperture | Both ends: approx 7'8" wide x 7'5" high per set of doors |
| Locking | Rear door lockbox (padlock bar) — padlock sold separately |
| Environmental & Safety | |
|---|---|
| Wind & Water Rating | Wind and Water Tight (WWT) — guaranteed |
| Ventilation | Two passive vents (standard) — upgrades available on request |
| Fire Rating | Steel construction — non-combustible structure |
| Pest Resistance | Steel floor frame and walls — rodent and pest resistant |
| UV Resistance | Corten steel develops a stable oxide layer — further protected by factory paint coat |
